POWERPLUS range of forklifts
With competitive running costs, powerful engine with environmental protection, our forklifts are designed for ultimate maneuverability and lifting capacity that could effortlessly perform the job with ease. Ergonomically cabin design and safety features enable driver to operator this mighty vehicle with precise control and seamlessly glide through every tight corners with maximum efficiency.
Featuring Japanese Isuzu, Mitsubishi, Yanmar and Deutz engines
- Wide foot room & suspension foot brake
- Dual suspension system
- Reinforced mast design
Epitomize the highest levels of performance and productivity.
PFD1400E
Diesel Forklift 14 Ton
DESIGN
New integrated dashboard + 30% more storage; streamlined ergonomic V-Series design stands out. All-round visibility, tool-free tilt cab (easy maintenance), one-piece section steel frame boosts rigidity.
COMFORT
Larger legroom boosts comfort; small steering wheel eases tight corners. This model’s dual suspension cuts engine/transmission noise/vibrations, plus new brakes.
Compact joystick enables precise control; optimized braking ensures smooth stops. Suspended seat (fingertip controls) + ergonomic console add comfort. Upgraded AC + multi-proof sealing enhance comfort.
SAFETY
POWERPLUS prioritizes workplace safety. Wide-view mast (visibility up to 750mm) protects operator & bystanders. Reinforced canopy/cabin (profiled steel + acrylic glass) guards against falling objects/rollover.
Optional imaging+360° monitoring boosts safety. Frame/mast (CAE-tested) ensure strength/safety. Heavy-duty axle + hydraulic parking brake are safe & reliable.
STABILITY
To boost parts/service support, small-capacity forklift components are standardized: cabin fits canopy (no mods); 1.0-4.0t operation parts (engine cover, etc.) are interchangeable.
Modular/standardized design ensures stable performance; efficiency +10%+, standardized parts simplify maintenance.
| Model | PFD 1400E |
|---|---|
| Power Type | Diesel |
| Operator Type | Seated |
| Related Load Capacity | 1400 kg |
| Load Centre | 600 mm |
| Total Weight | 18200 kg |
| Battery | 12-120 (X2) V/Ah |
| Operating Pressure | 150 kg/cm2 |
| Fuel Tank | 320 L |
| Engine Type | QSB 6.7 - C160 |
| Related Power | 160 / 2300 HP / r.p.m |
| Related Torque | 731 / 1500 N.m / r.m.p |
| Displacement | 6.7 L |
| Emission Standard | Euro III |
| No. of Cylinder | 6 |
| Transmission Brand | Japan |
| Transmission Type | Powershift |
| Foward / Reverse | 2 / 1 |
| Travel Speed (laden/unladen) | 25 / 29 km/h |
| Lifting Speed (laden/unladen) | 350 / 380 mm/s |
| Lowering Speed (laden/unladen) | ≥450 / ≤400 mm/s |
| Max. Drawbar Pull (laden) | 115 kN |
| Max. Gradeability (laden) | 20% |
| Tire Front | 11-20-18PR mm |
| Tire Rear | 11-20-18PR mm |
| Front Tread | 1780 mm |
| Rear Tread | 1890 mm |
| Wheelbase | 3100 mm |
| Service Brake | Wet disc brake |
| Rated Lift Height | spring applied,hydraulic release multi-disc brake |
| Rated Lift Height | 3000 mm |
| Free Lift Height | 0 mm |
| Fork size (LxWxT) | 1520x200x90 mm |
| Mast Tilt Angle | 6 / 12° |
| Front Overhang (Wheel Center to Fork Face) | 825 mm |
| Rear Overhang | 835 mm |
| Ground Clearance (Bottom of Mast) | 250 mm |
| Length to Face of Fork (Without Fork) | 4760 mm |
| Overall Width | 3270 mm |
| Mast Lowered Height | 1990 mm |
| Mast Extended Height (With Backrest) | 4790 mm |
| Overhead Guard Height | 3280 mm |
| Overhead Guard Height | 4350 mm |
DIMENSION AND RANGES

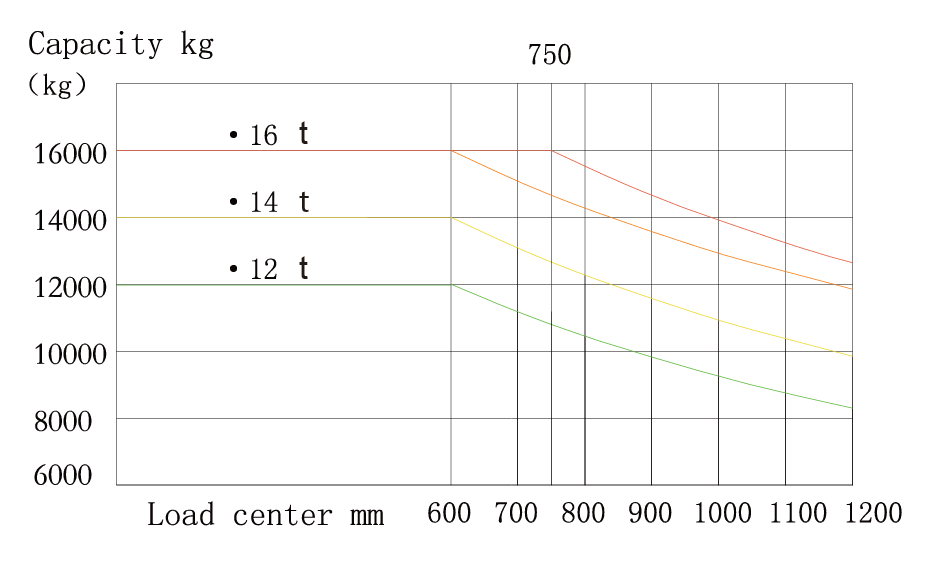

CAPACITY CHART
